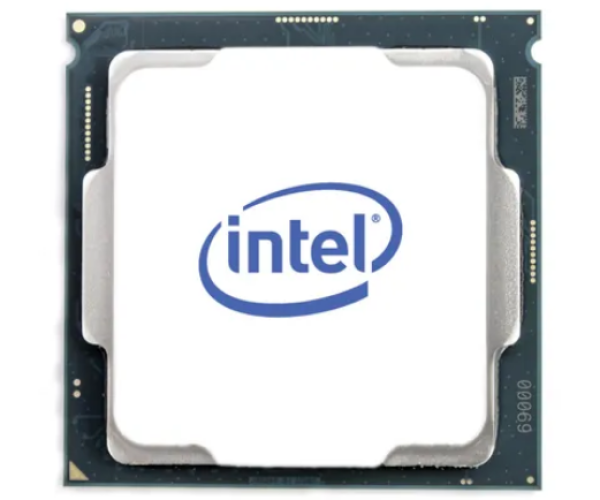

Processors SKU:BX80684E2224G

Description

Processor

Cooler included Y
Processor operating modes 64-bit
Box Y
Processor cores 4
Processor socket LGA 1151 (Socket H4)
Processor lithography 14
Processor threads 4
Processor cache 8
Processor cache type Smart Cache
System bus rate 8
Component for Server/Workstation
Processor boost frequency 4.7
Box N
Processor codename Coffee Lake
Processor manufacturer Intel
Thermal Design Power (TDP) 71
Processor family Intel Xeon E
Processor model E-2224G
Processor base frequency 3.5
Processor ARK ID 191037
Memory

Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 2666
Maximum internal memory supported by processor 128
ECC Y
Memory channels Dual-channel
Graphics

Discrete graphics adapter N
Discrete graphics adapter model Not available
On-board graphics adapter Y
On-board graphics adapter base frequency 350
Number of displays supported (on-board graphics) 3
On-board graphics adapter DirectX version 12.0
On-board graphics adapter OpenGL version 4.5
On-board graphics adapter dynamic frequency (max) 1200
On-board graphics adapter 4K support Y
On-board graphics adapter maximum resolution (DisplayPort) 4096 x 2304
On-board graphics adapter maximum resolution (eDP – Integrated Flat Panel) 4096 x 2304
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) 60
On-board graphics adapter refresh rate at maximum resolution (eDP – Integrated Flat Panel) 60
On-board graphics adapter refresh rate at maximum resolution (HDMI) 24
On-board graphics adapter model Intel UHD Graphics P630
Maximum on-board graphics adapter memory 128
On-board graphics adapter maximum resolution (HDMI) 4096 x 2160
On-board graphics adapter ID 0x3E96
On-board graphics card Y
Discrete graphics card N
Discrete graphics card model Not available
On-board graphics card base frequency 350
On-board graphics card 4K support Y
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.5
On-board graphics card maximum resolution (DisplayPort) 4096 x 2304
On-board graphics card maximum resolution (eDP – Integrated Flat Panel) 4096 x 2304
On-board graphics card maximum resolution (HDMI) 4096 x 2160
On-board graphics card refresh rate at maximum resolution (DisplayPort) 60
On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) 60
On-board graphics card dynamic frequency (max) 1200
Maximum on-board graphics card memory 128
On-board graphics card refresh rate at maximum resolution (HDMI) 24
On-board graphics card model Intel UHD Graphics P630
On-board graphics card ID 0x3E96
Technical details

Status Launched
Product type Processor
Launch date Q2’19
Maximum memory 128
Bus speed 8 GT/s
Maximum resolution & refresh rate (DisplayPort) 4096×2304@60Hz
Supported memory types DDR4-SDRAM
Maximum graphics adapter memory 128
Processor ID 0x3E96
Maximum graphics card memory 128
Servicing status Baseline Servicing
Features

PCI Express slots version 3.0
PCI Express configurations 1×16,2×8,1×8+2×4
Harmonized System (HS) code 8542310001
Execute Disable Bit Y
Idle States Y
Thermal Monitoring Technologies Y
Maximum number of PCI Express lanes 16
Supported instruction sets SSE4.1,SSE4.2,AVX 2.0
Scalability 1S
CPU configuration (max) 1
Embedded options available N
PCI Express CEM revision 3.0
Market segment Server
Export Control Classification Number (ECCN) 5A992C
Commodity Classification Automated Tracking System (CCATS) G077159
Operational conditions

Tjunction 100
Tcase 69.3
Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology) N
Intel® Turbo Boost Technology 2.0
Intel® AES New Instructions (Intel® AES-NI) Y
Enhanced Intel SpeedStep Technology Y
Intel Trusted Execution Technology Y
Intel VT-x with Extended Page Tables (EPT) Y
Intel 64 Y
Intel Virtualization Technology (VT-x) Y
Intel Virtualization Technology for Directed I/O (VT-d) Y
Intel® vPro™ Platform Eligibility Y
Intel® Quick Sync Video Technology Y
Intel® InTru™ 3D Technology Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y
Intel® Secure Key Y
Intel® Optane™ Memory Ready Y
Intel TSX-NI Y
Intel® OS Guard Y
Intel® Memory Protection Extensions (Intel® MPX) Y
Intel Clear Video Technology Y
Intel® Boot Guard Y
Intel Software Guard Extensions (Intel SGX) Y
Intel® Transactional Synchronization Extensions Y
Intel® Turbo Boost Technology 2.0 frequency 4.7
Weight & dimensions

Processor package size 37.5mm x 37.5mm
Packaging data

Package type Retail box
Other features

Maximum internal memory 128
Logistics data

Harmonized System (HS) code 85423119
