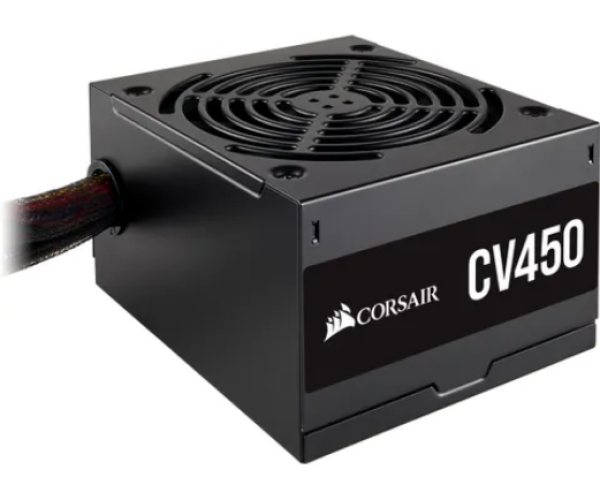

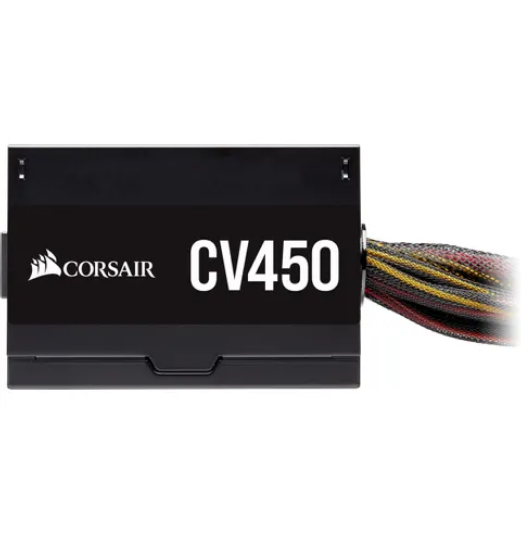

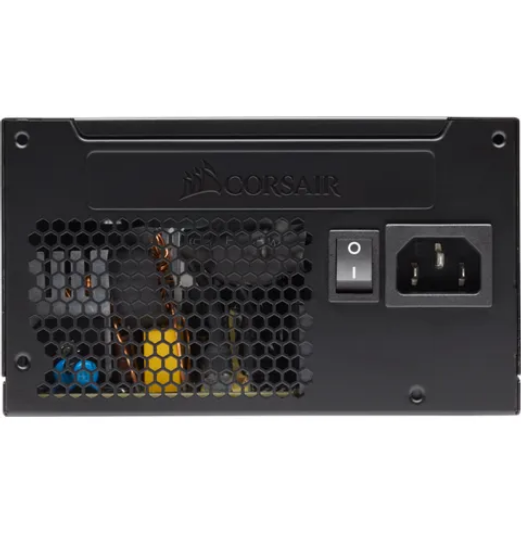

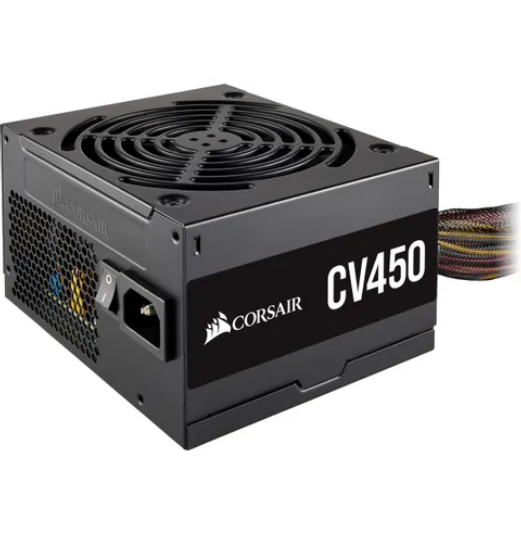

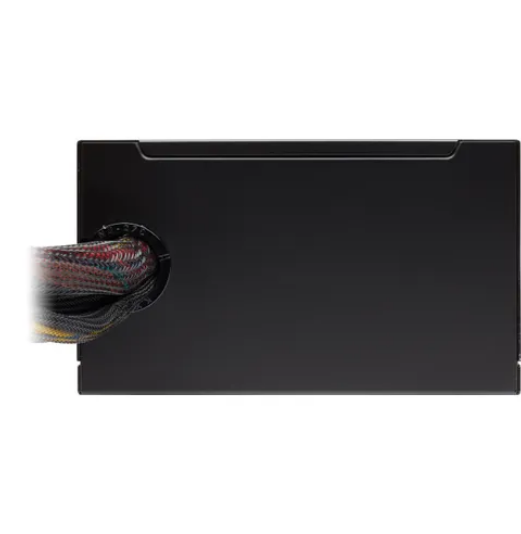

Name: Corsair CP-9020209-NA SKU:CP-9020209-NA
SKU: CP-9020209-NA
Availability: BackOrder

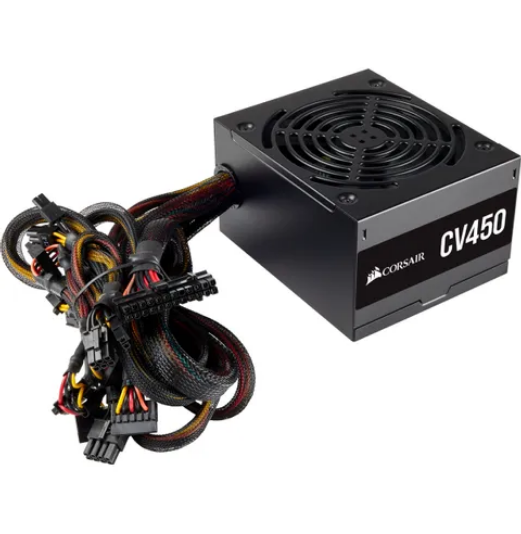

Corsair CP-9020209-NA SKU:CP-9020209-NA

Corsair CP-9020209-NA. Total power: 450 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 125 mm, Height: 86 mm

Available on backorder

SKU: CP-9020209-NA Category: Power Supply

Description

Design
Product colour Black

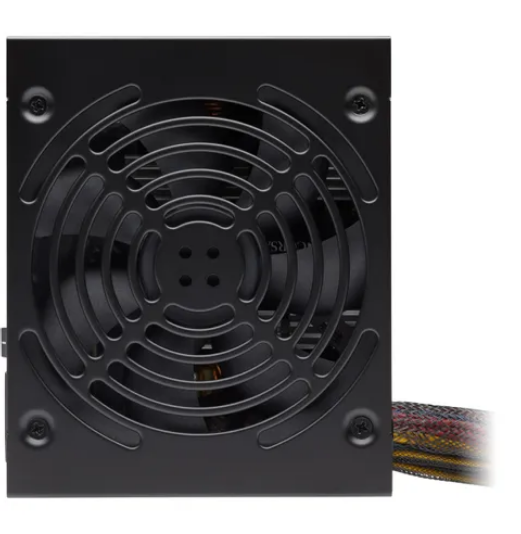

Number of fans 1
Fan diameter 120

Weight & dimensions
Width 150
Height 86
Depth 125

Power
AC input voltage 100 – 240
AC input frequency 47 – 63
Input current 5 – 10
Total power 450
Combined power (+3.3V) 110
Combined power (+12V) 432
Combined power (+5V) 110
Combined power (-12V) 3.6
Combined power (+5Vsb) 15
Max output current (+3.3V) 20
Max output current (+12V) 36
Max output current (+5V) 20
Max output current (-12V) 0.3
Max output current (+5Vsb) 3
Max output current (+12V1) 36

Performance
80 PLUS certification 80 PLUS Bronze
Mean time between failures (MTBF) 100000
Purpose PC
Power supply unit (PSU) form factor ATX
ATX version 2.31
EPS version 2.92
Silent mode Y

Ports & interfaces
Floppy drive power connector 1
Number of PATA power connectors 7
