Memory
Maximum internal memory 64
ECC Y
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Non-ECC Y
Unbuffered memory Y
Memory channels Dual-channel
Supported memory clock speeds 2133,2400,2666,2933,3000,3200
Network
Wi-Fi N
Ethernet LAN Y
Ethernet interface type Gigabit Ethernet
Expansion slots
PCI Express x1 slots 1
PCI Express x16 slots 1
Number of M.2 (M) slots 1
Graphics
Maximum resolution 4096 x 2160
Parallel processing technology support Not supported
HDCP Y
Features
Component for PC
Motherboard form factor Micro ATX
Motherboard chipset family Intel
Audio output channels 7.1
PC health monitoring FAN,Temperature,Voltage
Windows operating systems supported Windows 10 x64,Windows 11 x64
Motherboard chipset Intel H610 Express
Packaging content
Cables included SATA
Drivers included Y
Bundled software Norton Internet Security (OEM version), LAN bandwidth management software
Internal I/O
USB 2.0 connectors 2
Serial port headers 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of chassis fan connectors 2
TPM connector Y
Number of SATA III connectors 4
Front panel audio connector Y
Front panel connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
EPS power connector (8-pin) Y
12V power connector Y
RGB LED pin header Y

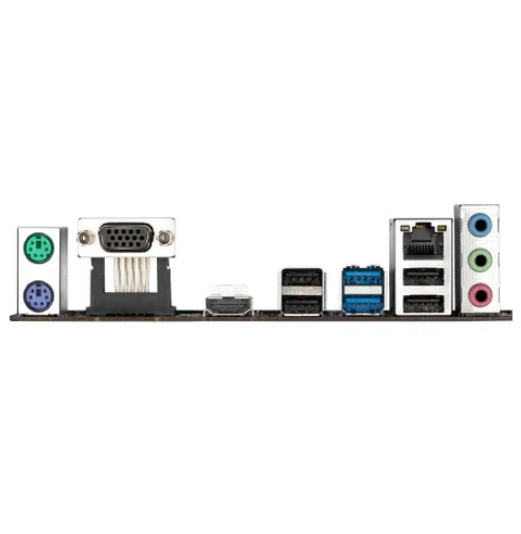

Rear panel I/O ports
USB 2.0 ports quantity 4
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
PS/2 ports quantity 2
HDMI ports quantity 1
Microphone in Y
HDMI version 2.0
USB connector type USB Type-A
Headphone outputs 3
BIOS
BIOS type UEFI AMI
BIOS memory size 256
ACPI version 5.0
Clear CMOS jumper Y
Desktop Management Interface (DMI) version 2.7
System management BIOS (SMBIOS) version 2.7
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
Number of storage drives supported 5

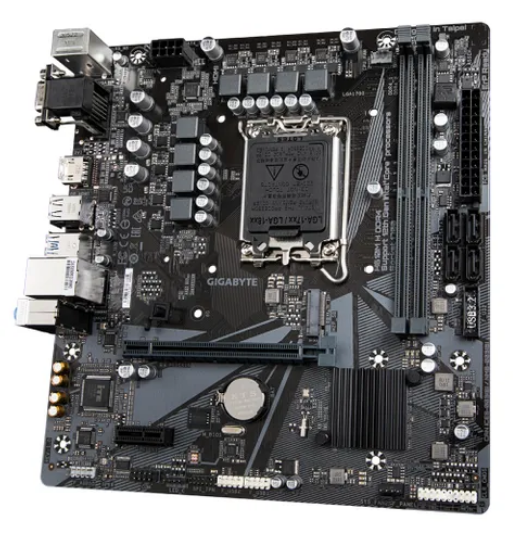

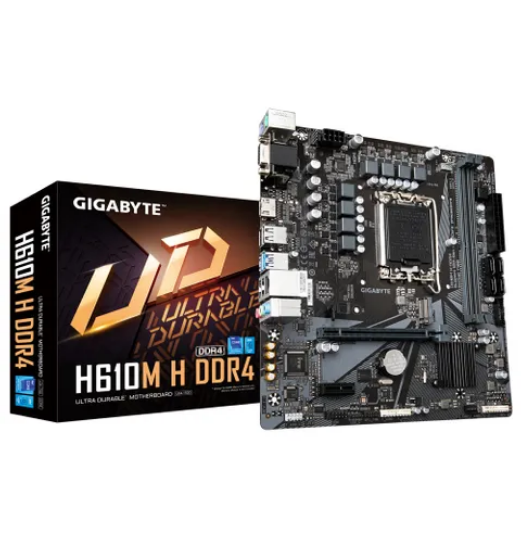

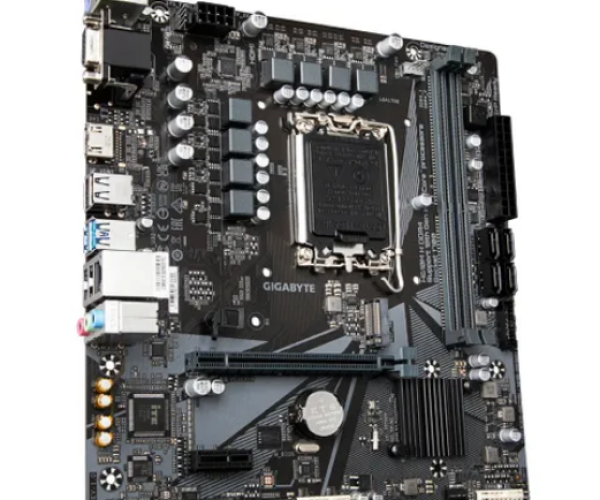

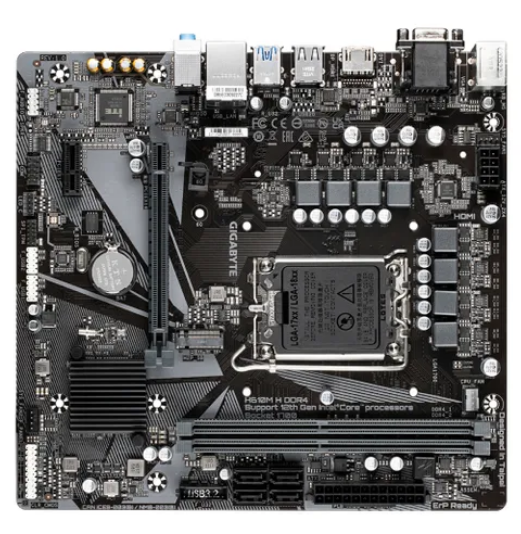

Gigabyte Motherboard SKU:GA-H610M-H-DDR4
R2,099.00Original price was: R2,099.00.R1,899.00Current price is: R1,899.00.Gigabyte H610M H DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
Available on backorder
Description
Memory
Maximum internal memory 64
ECC Y
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Non-ECC Y
Unbuffered memory Y
Memory channels Dual-channel
Supported memory clock speeds 2133,2400,2666,2933,3000,3200
Network
Wi-Fi N
Ethernet LAN Y
Ethernet interface type Gigabit Ethernet
Expansion slots
PCI Express x1 slots 1
PCI Express x16 slots 1
Number of M.2 (M) slots 1
Weight & dimensions
Width 230
Depth 215
Processor
Processor manufacturer Intel
Compatible processor series Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G
Processor socket LGA 1700
Supported processor sockets LGA 1700
Graphics
Maximum resolution 4096 x 2160
Parallel processing technology support Not supported
HDCP Y
Features
Component for PC
Motherboard form factor Micro ATX
Motherboard chipset family Intel
Audio output channels 7.1
PC health monitoring FAN,Temperature,Voltage
Windows operating systems supported Windows 10 x64,Windows 11 x64
Motherboard chipset Intel H610 Express
Packaging content
Cables included SATA
Drivers included Y
Bundled software Norton Internet Security (OEM version), LAN bandwidth management software
Internal I/O
USB 2.0 connectors 2
Serial port headers 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of chassis fan connectors 2
TPM connector Y
Number of SATA III connectors 4
Front panel audio connector Y
Front panel connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
EPS power connector (8-pin) Y
12V power connector Y
RGB LED pin header Y
Rear panel I/O ports
USB 2.0 ports quantity 4
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
PS/2 ports quantity 2
HDMI ports quantity 1
Microphone in Y
HDMI version 2.0
USB connector type USB Type-A
Headphone outputs 3
BIOS
BIOS type UEFI AMI
BIOS memory size 256
ACPI version 5.0
Clear CMOS jumper Y
Desktop Management Interface (DMI) version 2.7
System management BIOS (SMBIOS) version 2.7
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
Number of storage drives supported 5
