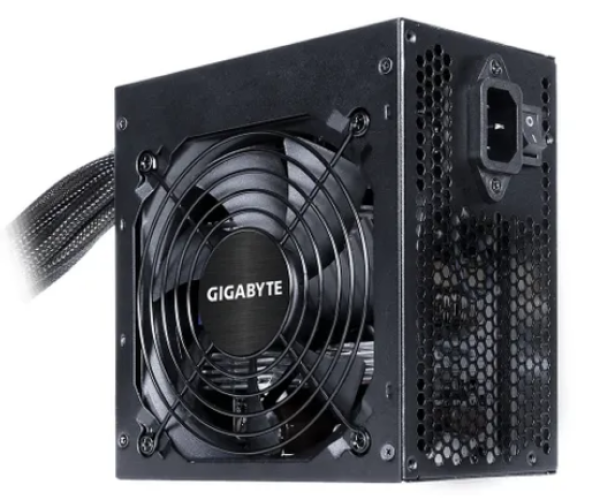

Gigabyte Power Supply SKU:GP-P650B

Description

Design
Product colour Black
Number of fans 1
Cooling type Active
Fan diameter 120
Fan location Top
On/off switch Y

Weight & dimensions
Depth 150
Width 140
Height 86

Power
AC input voltage 100 – 240
AC input frequency 50 – 60
Total power 650
Power Factor Correction (PFC) type Active
Combined power (+12V) 648
Combined power (-12V) 3.6
Combined power (+5Vsb) 12.5
Max output current (+3.3V) 18
Max output current (+12V) 54
Max output current (+5V) 15
Max output current (-12V) 0.3
Max output current (+5Vsb) 2.5
Combined power (+3.3V) 108
Combined power (+5V) 108
Input current 9 – 4
Maximum input current (@110V) 9
Maximum input current (@220V) 4
Power protection features Over power,Overcharge,Short circuit,Under voltage

Packaging data
Package type Box

Performance
80 PLUS certification 80 PLUS Bronze
Mean time between failures (MTBF) 100000
Purpose PC
Power supply unit (PSU) form factor ATX
ATX version 2.31
Bearing technology HDB
Noise level 39
Certification CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE

Ports & interfaces
Peripheral (Molex) power connectors (4-pin) 3
Number of SATA power connectors 6
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 600
PCI Express power connectors (6+2 pin) 4
CPU power cable length 600
ATX power connector (20+4 pin) Y
Cabling type Non-Modular
CPU power connector (4+4 pin) Y
Floppy disk drive connector Y
CPU P4 connector (4-pin) 1
SATA power cable length 150,500
Peripheral (Molex) power cable length 150,500
PCI Express power cable length 650

Other features
Noise level (silent mode, <30%) 20 Noise level (quiet mode, 50%) 29 Noise level (full-load mode, 100%) 39 Power management Y
