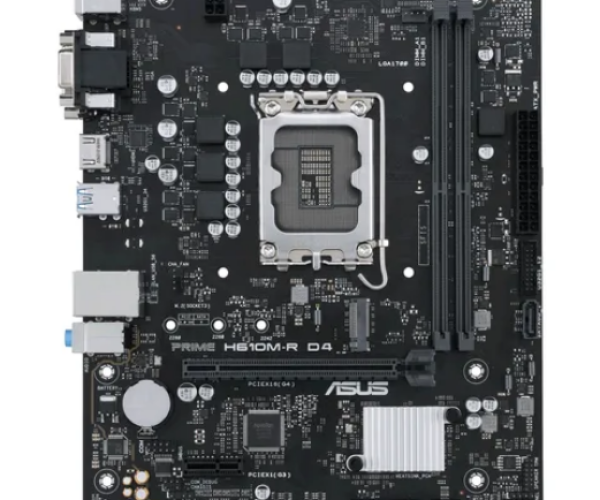

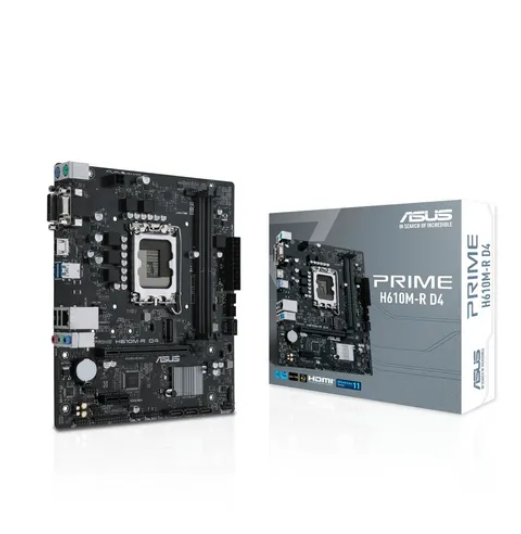

Asus Motherboard SKU:90MB1B40-M0ECY0

Description

Memory
Maximum internal memory 64
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Non-ECC Y
Unbuffered memory Y
Supported memory clock speeds 2133,2400,2666,2800,2933,3000,3200
Memory channels Dual-channel

Network
Wi-Fi N
Ethernet LAN Y
Ethernet interface type Gigabit Ethernet
Wake-on-LAN ready Y

Weight & dimensions
Width 270
Depth 260
Height 51

Processor
Processor manufacturer Intel
Compatible processor series Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G
Processor socket LGA 1700
Supported processor sockets LGA 1700

Graphics
Parallel processing technology support Not supported
Maximum resolution 3840 x 2160

Features
Component for PC
Motherboard form factor Micro ATX
Motherboard chipset family Intel
Audio output channels 7.1
Windows operating systems supported Windows 10 x64,Windows 11 x64
Motherboard chipset Intel H610
Harmonized System (HS) code 84733020

Packaging content
Cables included SATA
Drivers included Y

Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1

Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of chassis fan connectors 1
TPM connector Y
Number of SATA III connectors 4
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Chassis intrusion connector Y
12V power connector Y
Audio connector Y
Number of COM connectors 1

Rear panel I/O ports
USB 2.0 ports quantity 2
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
PS/2 ports quantity 2
HDMI ports quantity 1
DVI-D ports quantity 1
Microphone in Y
USB connector type USB Type-A
Headphone outputs 3
HDMI version 2.1

BIOS
BIOS type UEFI AMI
BIOS memory size 128
Clear CMOS jumper Y

Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
Number of storage drives supported 5

Logistics data
Country of origin China

Packaging data
Package weight 844

Other features
Weight 842
