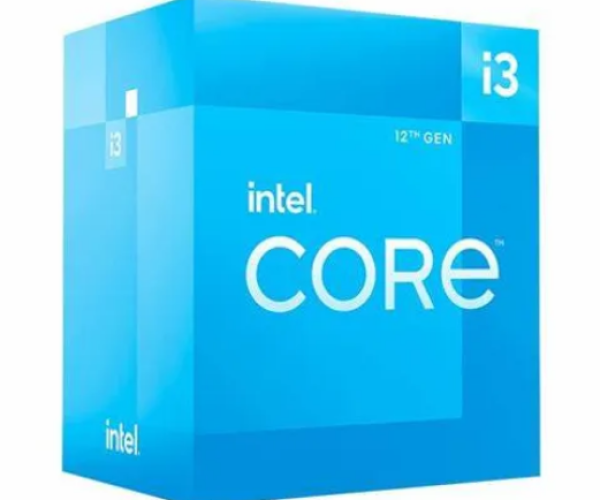

Processors SKU:BX8071512100

Description

Processor
Processor operating modes 64-bit
Box Y
Processor cores 4
Processor threads 8
Processor cache type Smart Cache
Processor cache 12
Processor boost frequency 4.3
Processor manufacturer Intel
Processor socket LGA 1700
Maximum number of DMI lanes 8
Processor codename Alder Lake
Processor family Intel Core i3-12xxx
Processor model i3-12100
Performance cores 4
Performance-core boost frequency 4.3
Performance-core base frequency 3.3
Processor base power 60
Maximum turbo power 89

Graphics
Discrete graphics adapter N
Discrete graphics adapter model Not available
On-board graphics adapter Y
On-board graphics adapter base frequency 300
On-board graphics adapter DirectX version 12.0
On-board graphics adapter OpenGL version 4.5
On-board graphics adapter dynamic frequency (max) 1400
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) 60
Number of execution units 24
On-board graphics adapter maximum resolution (HDMI) 4096 x 2160
On-board graphics adapter refresh rate at maximum resolution (HDMI) 60
Number of displays supported (on-board graphics) 4
On-board graphics adapter model Intel UHD Graphics 730
On-board graphics adapter maximum resolution (eDP – Integrated Flat Panel) 5120 x 3200
On-board graphics adapter outputs supported Embedded DisplayPort (eDP) 1.4b,DisplayPort 1.4a,HDMI 2.1
On-board graphics adapter maximum resolution (DisplayPort) 7680 x 4320
On-board graphics adapter refresh rate at maximum resolution (eDP – Integrated Flat Panel) 120
On-board graphics adapter ID 0x4692
Multi-Format Codec Engines 1

Technical details
Status Launched
OpenCL version 2.1
Launch date Q1’22

Memory
Maximum internal memory supported by processor 128
Memory channels Dual-channel
Memory types supported by processor DDR4-SDRAM,DDR5-SDRAM
Memory bandwidth (max) 76.8

Features
Harmonized System (HS) code 8542310001
Execute Disable Bit Y
Idle States Y
Thermal Monitoring Technologies Y
Supported instruction sets AVX 2.0,SSE4.1,SSE4.2
Scalability 1S
CPU configuration (max) 1
Embedded options available N
Market segment Desktop
Maximum number of PCI Express lanes 20
Export Control Classification Number (ECCN) 5A992CN3
Commodity Classification Automated Tracking System (CCATS) G167599
PCI Express slots version 4.0,5.0
PCI Express configurations 1×16+1×4,2×8+1×4
Direct Media Interface (DMI) Revision 4.0

Operational conditions
Tjunction 100

Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology) Y
Intel® Turbo Boost Technology 2.0
Intel® AES New Instructions (Intel® AES-NI) Y
Enhanced Intel SpeedStep Technology Y
Intel VT-x with Extended Page Tables (EPT) Y
Intel 64 Y
Intel Virtualization Technology (VT-x) Y
Intel Virtualization Technology for Directed I/O (VT-d) Y
Intel® Quick Sync Video Technology Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y
Intel® Secure Key Y
Intel® Optane™ Memory Ready Y
Intel® OS Guard Y
Intel® Boot Guard Y
Intel® Speed Shift Technology Y
Intel Turbo Boost Max Technology 3.0 N
Mode-based Execute Control (MBE) Y
Intel® Deep Learning Boost (Intel® DL Boost) Y
Intel® Volume Management Device (VMD) Y
Intel® Control-flow Enforcement Technology (CET) Y
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 Y
Intel® Thread Director N

Weight & dimensions
Processor package size 45 x 37.5

Other features
Graphics output eDP 1.4b, DP 1.4a, HDMI 2.1
