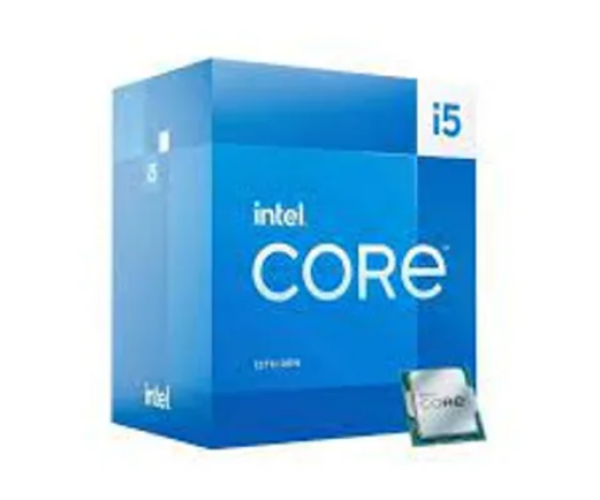

Processors SKU:BX8071513400

Description

Processor
Cooler included Y
Processor threads 16
Processor operating modes 64-bit
Box Y
Processor cache type Smart Cache
Processor boost frequency 4.6
Processor cores 10
Processor manufacturer Intel
Processor cache 20
Processor socket LGA 1700
Performance cores 6
Efficient cores 4
Maximum number of DMI lanes 8
Performance-core boost frequency 4.6
Performance-core base frequency 2.5
Processor base power 65
Efficient-core base frequency 1.8
Processor family Intel Core i5
Processor generation Intel Core i5-13xxx
Processor codename Raptor Lake
Efficient-core boost frequency 3.3
Maximum turbo power 154
Processor model i5-13400
Processor ARK ID 230495

Memory
Non-ECC Y
Memory channels Dual-channel
Maximum internal memory supported by processor 192
Memory types supported by processor DDR4-SDRAM,DDR5-SDRAM
Memory bandwidth (max) 76.8

Graphics
Number of execution units 24
Number of displays supported (on-board graphics) 4
Multi-Format Codec Engines 1
On-board graphics card Y
Discrete graphics card N
Discrete graphics card model Not available
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.5
On-board graphics card maximum resolution (HDMI) 4096 x 2160
On-board graphics card refresh rate at maximum resolution (DisplayPort) 60
On-board graphics card base frequency 300
On-board graphics card outputs supported Embedded DisplayPort (eDP) 1.4b,DisplayPort 1.4a,HDMI 2.1
On-board graphics card dynamic frequency (max) 1550
On-board graphics card maximum resolution (DisplayPort) 7680 x 4320
On-board graphics card maximum resolution (eDP – Integrated Flat Panel) 5120 x 3200
On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) 120
On-board graphics card refresh rate at maximum resolution (HDMI) 60
On-board graphics card ID 0x4682/0xA782
On-board graphics card model Intel UHD Graphics 730

Features
Execute Disable Bit Y
Idle States Y
Thermal Monitoring Technologies Y
Supported instruction sets AVX 2.0,SSE4.1,SSE4.2
Scalability 1S
CPU configuration (max) 1
Embedded options available Y
Quantity 1
Export Control Classification Number (ECCN) 5A992C
Market segment Desktop
Maximum number of PCI Express lanes 20
PCI Express slots version 4.0,5.0
Use conditions PC/Client/Tablet
PCI Express configurations 1×16+1×4,2×8+1×4
Direct Media Interface (DMI) Revision 4.0
Commodity Classification Automated Tracking System (CCATS) 740.17B1

Operational conditions
Tjunction 100

Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology) Y
Intel® Turbo Boost Technology 2.0
Intel® AES New Instructions (Intel® AES-NI) Y
Enhanced Intel SpeedStep Technology Y
Intel VT-x with Extended Page Tables (EPT) Y
Intel 64 Y
Intel Virtualization Technology (VT-x) Y
Intel Virtualization Technology for Directed I/O (VT-d) Y
Intel® Quick Sync Video Technology Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y
Intel® Secure Key Y
Intel® OS Guard Y
Intel® Boot Guard Y
Intel® Speed Shift Technology Y
Intel Turbo Boost Max Technology 3.0 N
Mode-based Execute Control (MBE) Y
Intel® Deep Learning Boost (Intel® DL Boost) Y
Intel® Volume Management Device (VMD) Y
Intel® Control-flow Enforcement Technology (CET) Y
Intel® Thread Director Y
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 Y
Intel® Standard Manageability (ISM) Y
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Y

Weight & dimensions
Processor package size 45 x 37.5

Other features
Graphics output eDP 1.4b, DP 1.4a, HDMI 2.1
Maximum internal memory 192
L2 cache 9728

Technical details
OpenCL version 3.0
Launch date Q1’23

Logistics data
Harmonized System (HS) code 8542310001
